Septic Installation in Ontario: The Complete Process From Site Evaluation to Final Inspection
Most property owners know they need a septic system on a rural lot — far fewer know what actually happens between deciding to build one and having a working, permitted system in the ground. The process has more stages than most people expect, and each stage has to happen in the right order before the next one can begin. This guide walks through the complete installation process as it applies to Georgian Bay and Simcoe County properties in 2026.
A septic system installation on a rural Ontario property is not a single job done in a day. It is a multi-stage process involving a site evaluator, a qualified designer, a municipal building department, sometimes a conservation authority, an excavation crew, a tank supplier, an installer, and a building inspector — each of whom needs to do their part in a specific sequence before the next person can proceed. Understanding that sequence before the project starts is what separates an installation that moves smoothly from one that stalls between stages because something was not ready when it needed to be.
In Georgian Bay and Simcoe County, septic installations carry an extra layer of complexity on regulated properties near the shoreline, wetlands, and other features overseen by the Nottawasaga Valley Conservation Authority. On those properties the NVCA’s approval of the system location must be obtained before the municipal building permit can be issued — adding a parallel approval process that needs to be started early and managed concurrently with the municipal application rather than sequentially.

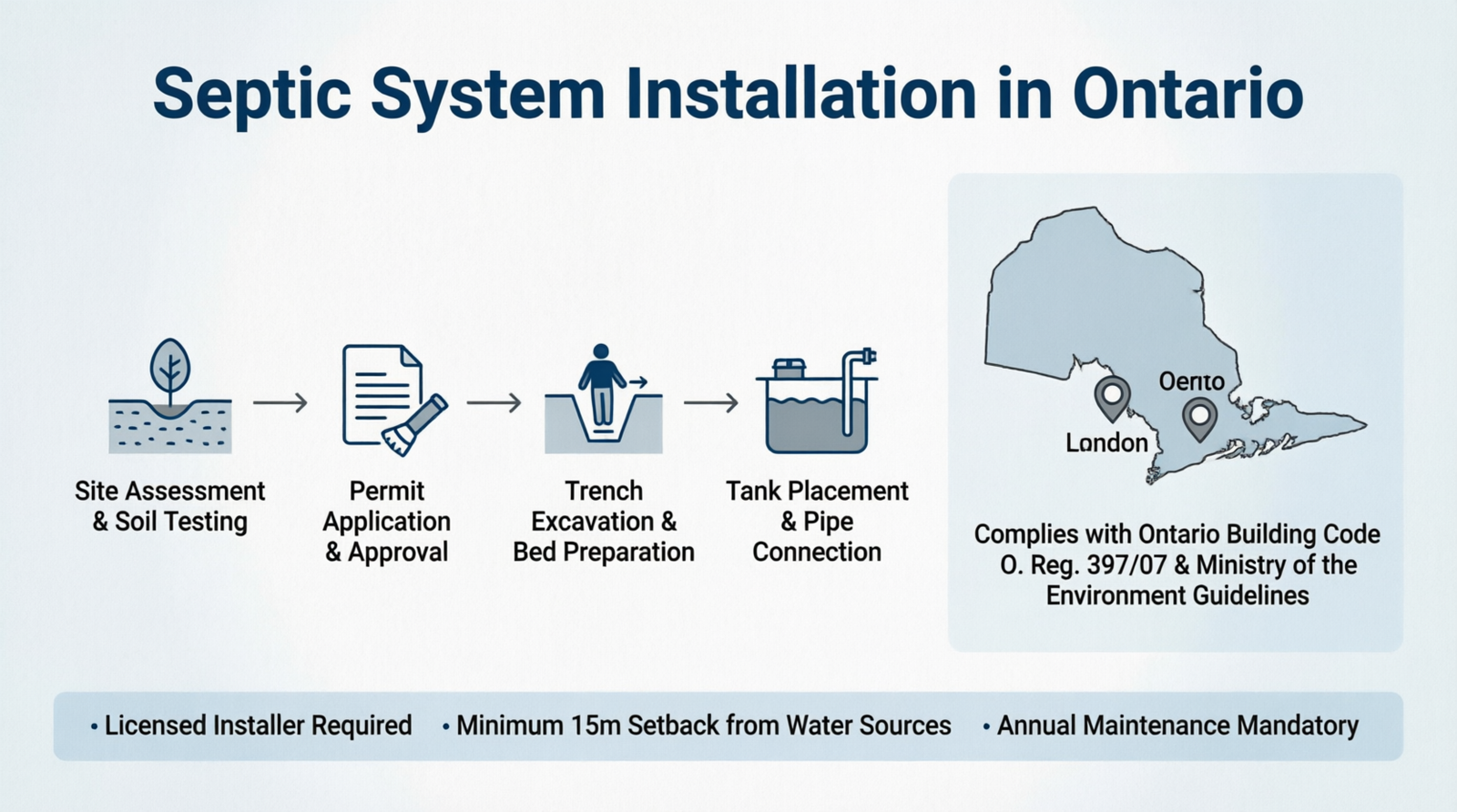

This guide covers the full installation process in plain terms — what happens at each stage, how long each stage takes, what can cause delays, and what the property owner needs to do or decide at each step. Whether this is a new installation on a raw lot or a replacement of a failing system on an existing property, the process is the same. The sooner each stage is started, the sooner work can legally begin.
Stage one: site evaluation and percolation testing
Before a septic system can be designed, before a permit can be applied for, and before any excavator is engaged, the soil on the property has to be evaluated. The site evaluation determines where a septic system can physically be located on the lot — accounting for required setbacks from wells, water bodies, property lines, and structures — and the percolation test measures how quickly that soil drains at the depth where the leaching bed will sit.
The perc test result is the most important number in the entire installation process. It determines which system types are permitted on the lot. Sandy loam that drains well opens up the simpler and less expensive conventional gravity bed option. Clay-heavy or high-water-table soils that drain poorly require engineered alternatives — pressure distribution systems, raised beds, or other approved treatment approaches — that cost significantly more to design and install. The perc test does not give you a choice between system types. It tells you what the soil will support, and the design must work within that constraint.
The site evaluation is conducted by a qualified septic system designer or a licensed engineer. They dig test holes to assess the soil profile — texture, structure, colour, and depth to any restrictive layers such as bedrock, dense clay, or a seasonally high water table — and then conduct the perc test by filling the test holes with water and timing how quickly it absorbs. The full evaluation for a residential property typically takes a few hours on site. Results are documented and form the basis for the design that follows.
The cost of a site evaluation and perc test in Simcoe County in 2026 runs approximately $500 to $1,500 depending on site complexity and the number of test locations required. That cost is paid to the designer directly and is separate from both the design fee and the permit fee — it is the first of several pre-installation costs that need to be in the budget before any ground is broken. The full breakdown of what a complete installation costs, including all pre-installation items, is in the septic system cost guide.
Stage two: system design
With perc results in hand, the qualified designer produces the system design. This is a technical document — not a rough sketch — that specifies every element of the installation in enough detail that a building inspector can verify compliance at each inspection stage. The design must comply with Ontario’s Building Code Part 8, which governs sewage systems on properties not served by municipal sewer.
What the design specifies
System type based on perc results. Tank size and material. Distribution system type and layout. Leaching bed dimensions, depth, and material. All required setback distances from wells, water bodies, structures, and property lines. Grading requirements for the installation area. Any pump, electrical, or maintenance requirements for non-conventional systems.
What increases design complexity and cost
Poor perc results requiring an engineered alternative system. Constrained lot with multiple overlapping setbacks. Proximity to Georgian Bay shoreline or wetlands requiring NVCA input on system location. Large household requiring higher-capacity system. Replacement installation requiring documentation of the existing system being removed.
Design fees for a residential septic system in Simcoe County in 2026 run approximately $1,500 for a straightforward conventional system on a cooperative site, up to $4,500 or more for a complex engineered system on a constrained or near-water property. The design fee is paid to the designer and is non-refundable once the design work is done — one more reason to confirm site feasibility and likely system type before commissioning the design. The full permit process — including what the design package needs to contain and how it connects to the municipal permit application — is covered in the septic permit guide for Simcoe County.
On properties being developed as part of a broader new home build, the septic design needs to be coordinated with the building location, driveway routing, and well location — all of which affect where the system can go and which setbacks apply. Getting all of those elements confirmed before the design is commissioned avoids the situation where a completed design needs to be revised because a building or well location moved after the septic bed was already placed on the plan. The land preparation guide for Georgian Bay builds covers how these elements are sequenced together on a new build site.
Stage three: permit applications — NVCA and municipal
Once the design is complete, permit applications can be submitted. On most rural properties in Georgian Bay and Simcoe County this means two applications that need to be submitted concurrently: the municipal building permit for the septic system, and on regulated properties, the NVCA permit for development within the regulated area.
The municipal building permit is submitted to the local municipality — Tiny Township, Tay Township, Midland, Penetanguishene, or whichever municipality the property is in. It requires the completed design package, a site plan showing system location and all setbacks, and the applicable permit fee. The municipality’s building department reviews the application against Ontario Building Code requirements and issues the permit once the review is complete and the NVCA approval — where required — is in hand.
Municipal permit fees for residential septic systems in Simcoe County run approximately $500 to $1,500 depending on the municipality and system complexity. NVCA permit fees for septic-related approvals typically run $400 to $1,200 where applicable. Both fees are paid at application submission and are separate from design costs and installation costs. Installation cannot legally begin until both permits are issued and in the contractor’s hands — not applied for, not in review, but issued and confirmed in writing.
Stage four: excavation — tank pit, trenching, and bed area
With permits in hand, physical installation begins with excavation. The scope of excavation on a septic project is significant and is one of the most variable cost items in the entire installation — because what the excavator encounters underground determines how long the work takes and what it costs, and that cannot be known with certainty until the machine is in the ground.
The excavation scope includes the tank pit — sized to accommodate the tank dimensions specified in the design, plus working room for placement and connection. The distribution system trenching — running from the tank to the leaching bed, at the grade and depth the design specifies. And the leaching bed area — stripped to remove topsoil and organics, excavated to the design depth, and prepared to receive the bed material in the configuration the design requires.
Ground conditions also affect excavation on a seasonal basis. Spring thaw makes ground soft and excavation messy. Summer and fall tend to produce the best conditions for clean, controlled digging. High water table during spring can complicate tank pit excavation if groundwater is encountered before design depth is reached. An experienced local excavation crew knows how to read those conditions and sequence the work accordingly — which is one reason local field experience matters more than hourly rate alone when choosing an installation contractor in Georgian Bay.
Coordinating septic excavation with broader site excavation — foundation work, utility trenching, lot grading — is consistently more cost-effective than mobilizing separately for each phase. If clearing, driveway, and foundation excavation are all happening as part of a new build, rolling the septic excavation into the same scope keeps equipment on site and eliminates the mobilization cost that applies to every separate visit. This coordination is part of what the excavation services page covers for site work projects across the Georgian Bay region.
Stage five: pre-installation and excavation inspections
Before materials are placed in the ground, mandatory inspections confirm that the excavation matches the design. These are not optional check-ins — they are conditions of the permit, and placing material before the inspection is conducted and passed is a violation that can require uncovering the work at the owner’s expense.
| Inspection | What is confirmed | What happens if it fails |
|---|---|---|
| Pre-installation | Proposed system location confirmed in the field. All setback distances verified from actual structures, well, and property lines before excavation begins. | Location must be adjusted to meet setbacks before excavation proceeds. Redesign may be required if adjustment changes bed dimensions or system type. |
| Excavation | Excavated areas reviewed to confirm soil conditions match design assumptions. Depth to water table and restrictive layers verified against perc test data. Any discrepancy between field conditions and design triggers review before installation continues. | If field conditions differ materially from design assumptions, a design revision is required before installation can proceed. This adds time but is the correct outcome — installing a system designed for conditions that do not exist at the site produces a non-performing system. |
Inspections are conducted by the municipal building inspector and must be booked in advance — most Simcoe County building departments require a minimum of 48 hours notice, and during the busy April to October season that lead time is sometimes longer. Building inspection scheduling into the project timeline — not calling for an inspection the day work is ready — keeps the installation moving. A crew that finishes excavation on a Tuesday and cannot get an inspector until the following week is a crew sitting idle at significant cost while the project waits on a scheduling gap that could have been avoided.
Stage six: tank installation and distribution system
With excavation inspected and passed, the physical installation of the system components begins. The sequence follows the design exactly — any deviation from the approved plans requires a permit amendment before the change is made, not after.
The septic tank — typically precast concrete for residential systems in Ontario, though fibreglass tanks are also approved — is placed in the prepared pit and levelled. Inlet and outlet connections are made to the building sewer line and to the distribution system. The tank is inspected for cracks, correct inlet and outlet orientation, and proper elevation before any connections are finalized.
Conventional gravity system
Effluent flows by gravity from the tank outlet through distribution pipe to the leaching bed. No pump required. Simpler installation, lower maintenance requirements. Permitted only on soils with perc results that support natural drainage — common on sandy Georgian Bay lots with good-draining subsoils.
Pressure distribution or alternative system
A pump chamber downstream of the septic tank doses effluent to the distribution system under pressure, allowing more controlled and even distribution across the bed. Required when soils drain too slowly for gravity-fed distribution to work effectively. Adds a pump, electrical connection, and ongoing maintenance requirements to the installation.
The distribution system — the network of perforated pipe or chambers that spreads effluent across the leaching bed — is installed in the prepared bed area at the grade and spacing specified in the design. On conventional systems this is perforated pipe in gravel-filled trenches. On pressure systems the configuration varies by system type. The installation must match the approved design precisely — the inspector will verify this during the installation inspection before backfill is permitted.
Raised bed systems — required on properties where the native soil depth is insufficient for a conventional bed, or where seasonal water table is too high for conventional installation — involve importing significant volumes of approved fill material to build up the bed area above natural grade before the distribution system is installed. The volume of fill required is one of the main cost drivers on raised bed installations, and it is sized by the design — not something the installer can reduce without a design amendment.
Stage seven: the installation inspection — the most critical hold point
Before any backfill is placed over the installed system, the installation inspection must be conducted and passed. This is the most important inspection in the entire process. Once the system is covered, the inspector can no longer verify that what is in the ground matches what was approved. Covering a system before the installation inspection is a serious permit violation — the inspector can require the owner to uncover the work for inspection at the owner’s expense, which means excavating through completed backfill to expose a system that was already installed.
During the installation inspection, the building inspector confirms that the tank is correctly placed and connected, that the distribution system matches the approved design in layout and elevation, that the bed material meets specification, that all setback distances are maintained, and that the system is ready for backfill in the condition shown in the approved plans. Any deficiency identified at this inspection must be corrected and reinspected before backfill proceeds.
On properties where the excavation inspection revealed soil conditions different from design assumptions — requiring a mid-installation design revision — the revised design must be approved by the building department before the installation inspection can proceed. That revision and approval process takes time and needs to be managed proactively rather than discovered the morning the inspector arrives on site.
Stage eight: backfill, grading, and site restoration
With the installation inspection passed, backfill can proceed. The sequence and material used for backfill matters — the design specifies what material goes over the bed, to what depth, and with what surface grading. Dumping unsuitable fill over an inspected leaching bed compromises the system’s ability to function and can result in a failed final inspection.
The bed area is typically covered with approved native soil or imported fill to the depth and grade specified in the design. The surface grade over the bed must promote drainage away from the bed rather than allowing water to pond over it — a common grading mistake that reduces system performance by saturating the bed from above rather than letting it dry between dosing cycles. The design will specify the finished grade requirements and the building inspector will verify them at the final inspection.
Site restoration after septic installation on a new build site is typically coordinated with final lot grading — the same grading work that establishes drainage patterns around the foundation, shapes the yard, and prepares the lot for topsoil and surface treatment. Doing septic restoration and final lot grading as a single coordinated pass rather than as two separate operations produces a more consistent result and eliminates the double-handling of material that comes from grading the lot twice. This connection between septic completion and final grading is part of why the land preparation guide treats them as sequential stages in the same site work scope rather than as independent activities.
Stage nine: final inspection and certificate of completion
The final inspection confirms that the completed installation — including backfill, grading, site restoration, and any system components requiring inspection after backfill — matches the approved design and complies with the permit conditions. When the final inspection passes, the building inspector issues a certificate of completion for the sewage system. That certificate is the official record that the system was installed to code and inspected throughout the process.
The certificate of completion matters beyond the immediate project. It is the document that confirms the system is permitted and code-compliant, which is relevant to future property sales, mortgage applications, and any subsequent permit applications on the property. A septic system without a certificate of completion is effectively an unpermitted system in the eyes of the building department — and unpermitted systems are material defects that must be disclosed on property sale and can complicate financing.
What the certificate confirms
The system was installed in accordance with the approved design and Ontario Building Code requirements. All mandatory inspections were conducted and passed. The system is permitted and legally compliant as of the inspection date.
What it does not cover
Future system performance depends on correct use and maintenance by the property owner. The certificate confirms the installation was correct — it does not guarantee performance if the system is overloaded, not pumped on schedule, or subjected to substances that damage the biological treatment process in the tank and bed.
Keep the certificate of completion, the approved design package, and any as-built drawings in a location where they can be retrieved when needed. These documents are frequently requested when a property is sold, when a building permit for additions or renovations is applied for, or when a system problem occurs and a contractor needs to understand what is in the ground before beginning diagnostic work.
What causes delays — and how to avoid them
| Delay cause | When it hits | How to avoid it |
|---|---|---|
| Perc test done too late in the season | Before design begins — pushes the entire timeline forward by months | Do the perc test the fall before a planned spring installation. Do not wait for spring. |
| NVCA application submitted after the municipal application | Between design completion and permit issuance — adds four to eight weeks of sequential review | Submit NVCA and municipal applications at the same time. Always run them concurrently. |
| Incomplete permit application | During municipal review — stops the clock until missing material is provided | Submit a complete verified package the first time. Confirm requirements with the building department before submitting. |
| Rock or unexpected soil conditions in excavation | During excavation — can require design revision before installation continues | Ensure test holes during site evaluation go to adequate depth. Build contingency for rock in the excavation budget on properties with known geological complexity. |
| Inspection not booked until system is ready | Between installation and backfill — crew waiting idle while inspector is scheduled | Book inspections when excavation begins. Know the building department’s required notice period and schedule around it, not after. |
| Covering the system before the installation inspection | After installation — may require excavating the completed system for inspection | Never backfill before the installation inspection is conducted and passed. Book it early enough that it is on the calendar before the crew is ready to cover. |
Need a septic system installed properly in Georgian Bay or Simcoe County?
Georgian Bay Siteworks coordinates the full septic installation process — site evaluation referrals, permit applications, NVCA coordination, excavation, installation, and inspection management — for properties across Tiny Township, Tay, Midland, and the broader Georgian Bay region. One crew managing the full scope means no gaps between stages and no scheduling surprises.
Frequently Asked Questions
How long does septic system installation take in Ontario from start to finish?
From starting the perc test through to a completed, inspected system, the total elapsed time on a rural Ontario property in 2026 is typically four to six months when managed efficiently — and longer when permits are delayed or submitted sequentially rather than concurrently. The permit and approval stages take the most time. Physical excavation and installation, once permits are in hand and access is confirmed, typically takes two to five days for a conventional residential system depending on scope and conditions. Complex engineered systems or difficult ground conditions can extend the installation phase significantly.
What is a perc test and when does it need to happen?
A percolation test measures how quickly water drains through the soil at the depth where the leaching bed will be installed. It is the foundational piece of data that determines what system type is permitted on the lot — which directly determines what the installation will cost. Perc tests must be done when the ground is not frozen, typically late April through October in Simcoe County. For a spring or summer installation, the test needs to happen the previous fall so the design and permit process can run over winter. Waiting until spring for a spring installation almost always produces a summer or fall install date at the earliest.
Can I watch the installation — what should I expect on site during the work?
Yes. A septic installation on a typical residential lot involves an excavator, a crew of two to four people, and a tank delivery. Excavation of the tank pit and bed area typically takes the better part of a day. Tank delivery and placement happens once the pit is ready and inspected. Distribution system installation and bed preparation follow. For a conventional system on a cooperative site, the full physical installation often completes in two to three days. Inspections happen at the pre-installation, excavation, and installation stages — each requiring a building inspector on site for a period of time before work continues.
What happens if soil conditions during excavation do not match the design?
If the excavated conditions differ materially from what the perc test data and design assumed — rock at shallower depth, water table higher than expected, or significantly different soil texture — the designer needs to be notified immediately. A design revision may be required before installation can proceed. That revision needs to be approved by the building department before the installation inspection can take place. It adds time but is the correct response — installing a system designed for conditions that are not present at the actual installation site produces a non-performing system that will fail prematurely.
Can I drive over or plant trees on the leaching bed area?
No. The leaching bed area should be kept free of heavy equipment, vehicles, permanent structures, and deep-rooted plantings. Driving equipment over the bed compacts the material and reduces drainage capacity — the opposite of what the system requires. Tree roots can penetrate and damage the distribution system over time. The bed area can be seeded with grass and accessed for mowing, but it should be clearly marked and protected from any traffic or planting that would compromise the drainage material or the distribution pipes beneath it.
What is the difference between a septic tank and a leaching bed?
They are two different components of the same system. The septic tank is a watertight buried container — typically precast concrete for Ontario residential systems — that receives all household wastewater and separates solids from liquid through settling and biological action. The liquid effluent then flows to the leaching bed — a network of perforated pipe or chambers in gravel or approved fill material — where it is distributed into the soil for final treatment and dispersal. Both components are required, must be designed and sized together, and must be installed to the approved design specifications.
Does the septic system need to be pumped regularly after installation?
Yes. The accumulated solids in the septic tank need to be pumped out by a licensed hauler on a regular schedule — typically every three to five years for a residential system, depending on household size and usage. Failing to pump the tank on schedule allows solids to carry over into the leaching bed, clogging the distribution system and causing premature bed failure. Replacing a failed leaching bed is significantly more expensive than regular pumping. Keep a maintenance record including pump dates, volumes removed, and any observations noted by the pumping contractor.
What should not go into a septic system?
A septic system depends on a healthy biological community in the tank to break down solids. Products that kill bacteria — bleach, antibacterial soaps in large quantities, chemical drain cleaners, and solvents — disrupt that biological process. Non-biodegradable items that do not break down — wipes, sanitary products, excessive food waste from garbage disposals — accumulate in the tank and leaching bed and cause premature failure. Grease and cooking oils accumulate in the tank and carry over into the bed. A well-maintained system used correctly should function effectively for twenty to thirty years before any significant component replacement is needed.
Do I need an NVCA permit for septic installation in addition to the municipal permit?
On regulated properties in Georgian Bay and Simcoe County — which includes most properties near shorelines, wetlands, and other conservation authority features — yes. The NVCA reviews the proposed system location to confirm it meets regulated setbacks and does not adversely affect regulated features. The NVCA approval must be in hand before the municipal building permit is issued. Submitting the NVCA application concurrently with the municipal application — not after — is how you avoid adding their review periods together. The full NVCA process for Georgian Bay properties is explained in the NVCA permit guide.
What is a certificate of completion and why does it matter?
The certificate of completion is issued by the municipal building inspector after the final inspection confirms the system was installed in accordance with the approved design and building code requirements. It is the official record that the system is permitted and legally compliant. Keep it permanently with the property documents — it is frequently requested during property sales, mortgage applications, and future permit applications. A septic system without a certificate of completion is effectively an unpermitted system, which is a material defect that must be disclosed when the property is sold.
